和盈科技有限公司 HFL-C
產品規格

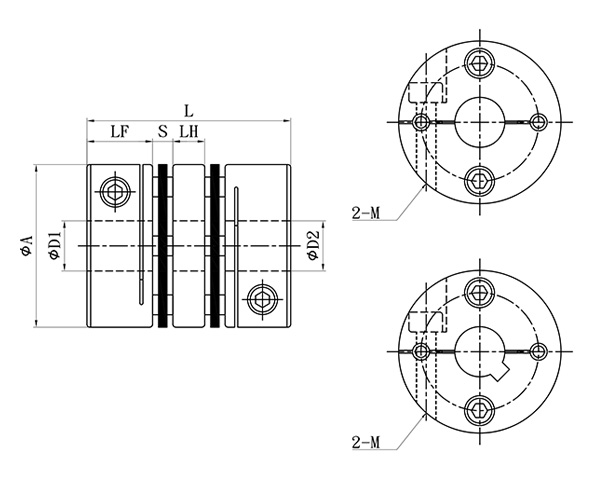

| 產品型號 | HFL-27C | HFL-35C | HFL-40C | HFL-45C | |
| A | 27 | 35 | 40 | 45 | |
| LF | 10 | 12 | 15 | 15 | |
| S | 3 | 3 | 3 | 4 | |
| LH | 8 | 8 | 10 | 10 | |
| L | 34 | 38 | 46 | 48 | |
| M | M3 | M3 | M4 | M4 | |
| D1 x D2 | Min. | 5 | 6 | 8 | 10 |
| Max. | 10 | 14 | 16 | 19 | |
| 產品型號 | HFL-56C | HFL-68C | HFL-82C | HFL-94C | |
| A | 56 | 68 | 82 | 94 | |
| LF | 21 | 24 | 30 | 30 | |
| S | 4 | 4 | 8 | 8 | |
| LH | 13 | 14 | 22 | 22 | |
| L | 63 | 70 | 98 | 98 | |
| M | M5 | M6 | M8 | M8 | |
| D1 x D2 | Min. | 12 | 14 | 19 | 25 |
| Max. | 25 | 32 | 35 | 45 | |
| 產品型號 | HFL-27C | HFL-35C | HFL-40C | HFL-45C | ||
| 常用扭力 | N.m | 1.8 | 4.0 | 6.0 | 10.0 | |
| 最大扭力 | N.m | 3.6 | 8.0 | 14.0 | 20.0 | |
| 容許誤差 | 偏心 | mm | 0.15 | 0.15 | 0.20 | 0.20 |
| 偏角 | 。 | 1° | 1° | 1° | 1° | |
| 軸向位移 | mm | ±0.33 | ±0.40 | ±0.50 | ±0.60 | |
| 最高轉速 | rpm | 10,000 | 10,000 | 10,000 | 10,000 | |
| 慣性矩 | kg.m2 | 3.41 x 10-6 | 11.3 x 10-6 | 26.3 x 10-6 | 41.7 x 10-6 | |
| 重量 | g | 35.0 | 62.0 | 116.0 | 131.0 | |
| 產品型號 | HFL-56C | HFL-68C | HFL-82C | HFL-94C | ||
| 常用扭力 | N.m | 25.0 | 60.0 | 100.0 | 180.0 | |
| 最大扭力 | N.m | 52.0 | 124.0 | 200.0 | 360.0 | |
| 容許誤差 | 偏心 | mm | 0.25 | 0.30 | 0.50 | 0.50 |
| 偏角 | 。 | 1° | 1° | 1° | 1° | |
| 軸向位移 | mm | ±0.80 | ±0.90 | ±1.10 | ±1.3 | |
| 最高轉速 | rpm | 10,000 | 10,000 | 10,000 | 10,000 | |
| 慣性矩 | kg.m2 | 136.1 x 10-6 | 366.9 x 10-6 | 1,070 x 10-6 | 1,750 x 10-6 | |
| 重量 | g | 310.0 | 365.0 | 1,300.0 | 1,500.0 | |
