和盈科技有限公司 HAL-P
產品規格

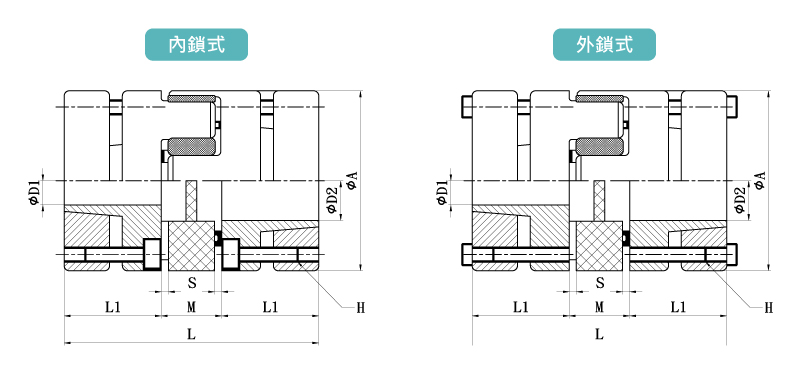

| 產品型號 | HAL-40P | HAL-55P | HAL-65P | HAL-80P | HAL-95P | |
| A | 40 | 55 | 65 | 80 | 95 | |
| L | 66 | 78 | 90 | 114 | 126 | |
| L1 | 25 | 30 | 35 | 45 | 50 | |
| M | 16 | 18 | 20 | 24 | 26 | |
| S | 1 | 1.5 | 2 | 2 | 3 | |
| H | M4-6 | M6-4 | M5-8 | M8-8 | M8-8 | |
| D1xD2 | Min. | 10 | 15 | 19 | 20 | 28 |
| Max. | 20 | 25 | 35 | 40 | 50 | |
| 鎖緊扭矩 | N.m | 6 | 15 | 9 | 30 | 30 |
| 產品型號 | HAL-40P | HAL-55P | HAL-65P | HAL-80P | HAL-95P | ||
| 常用扭力 | N.m | 17 | 60 | 160 | 325 | 450 | |
| 最大扭力 | N.m | 34 | 120 | 320 | 650 | 900 | |
| 容許誤差 | 偏心 | mm | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| 偏角 | 。 | 1° | 1° | 1° | 1° | 1° | |
| 軸向位移 | mm | +1.2 | +1.4 | +1.5 | +1.8 | +2.0 | |
| 最高轉速 | rpm | 19,000 | 14,000 | 11,500 | 9,500 | 8,000 | |
| 剛性靜扭力值 | N.m/ rad | 1,100 | 3,200 | 4,900 | 7,400 | 14,000 | |
| 慣性矩 | kg.m2 | 4.0 x 10-5 | 1.8 x 10-4 | 4.0 x 10-4 | 1.12 x 10-3 | 2.0 x 10-3 | |
| 重量 | g | 150 | 350 | 500 | 1,000 | 1,500 | |
