和盈科技有限公司 HFS-C
產品規格

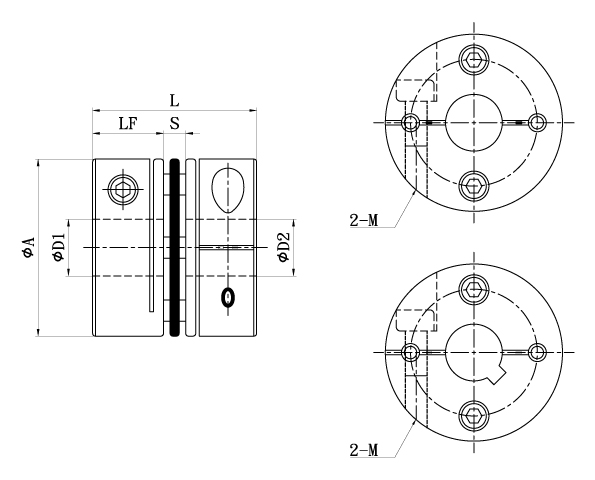

| 產品型號 | HFS-27C | HFS-35C | HFS-40C | HFS-45C | |
| A | 27 | 35 | 40 | 45 | |
| LF | 10 | 12 | 15 | 16 | |
| S | 3 | 3 | 3 | 3 | |
| L | 23 | 27 | 34 | 35 | |
| M | M3 | M3 | M4 | M4 | |
| D1 x D2 | Min. | 5 | 6 | 8 | 10 |
| Max. | 10 | 14 | 16 | 19 | |
| 產品型號 | HFS-56C | HFS-68C | HFS-82C | HFS-94C | |
| A | 56 | 68 | 82 | 94 | |
| LF | 21 | 24 | 30 | 30 | |
| S | 4 | 4 | 8 | 8 | |
| L | 46 | 52 | 68 | 68 | |
| M | M5 | M6 | M8 | M8 | |
| D1 x D2 | Min. | 12 | 14 | 19 | 25 |
| Max. | 25 | 32 | 35 | 45 | |
| 產品型號 | HFS-27C | HFS-35C | HFS-40C | HFS-45C | ||
| 常用扭力 | N.m | 1.8 | 4.0 | 6.0 | 10.0 | |
| 最大扭力 | N.m | 3.6 | 8.0 | 14.0 | 20.0 | |
| 容許誤差 | 偏心 | mm | 0.10 | 0.10 | 0.10 | 0.15 |
| 偏角 | 。 | 1° | 1° | 1° | 1° | |
| 軸向位移 | mm | ±0.15 | ±0.20 | ±0.25 | ±0.30 | |
| 最高轉速 | rpm | 10,000 | 10,000 | 10,000 | 10,000 | |
| 慣性矩 | kg.m2 | 2.47 x 10-6 | 8.16 x 10-6 | 18.5 x 10-6 | 29.7 x 10-6 | |
| 重量 | g | 25.0 | 48.0 | 90.0 | 98.0 | |
| 產品型號 | HFS-56C | HFS-68C | HFS-82C | HFS-94C | ||
| 常用扭力 | N.m | 25.0 | 60.0 | 100.0 | 180.0 | |
| 最大扭力 | N.m | 52.0 | 124.0 | 200.0 | 360.0 | |
| 容許誤差 | 偏心 | mm | 0.15 | 0.25 | 0.25 | 0.25 |
| 偏角 | 。 | 1° | 1° | 1° | 1° | |
| 軸向位移 | mm | ±0.40 | ±0.50 | ±0.55 | ±0.60 | |
| 最高轉速 | rpm | 10,000 | 10,000 | 10,000 | 10,000 | |
| 慣性矩 | kg.m2 | 100.0 x 10-6 | 267.7 x 10-6 | 736.5 x 10-6 | 1,220 x 10-6 | |
| 重量 | g | 238.0 | 470.0 | 1,050.0 | 1,230.0 | |
